10 Best Pool Pump Replacement Motors of 2026 — Quiet, Efficient & Long-Lasting
Measure shaft diameter and faceplate depth before ordering, use calipers and record keyway size. Choose motors like Pentair WhisperFlo WFE‑8 or A.O. Smith B2855/B855, note 3450 RPM and 230V nameplate specifications. Swap seals and inspect mechanical seal dimensions, torque bolts to spec and verify GO‑KIT‑32 compatibility. Test amp draw and voltage under load, troubleshoot humming, cavitation, or overheating by checking wiring and impeller clearance. Continue for full swap details and part-fit guidance and installation tips.
Key Takeaways
- Prioritize motors with high efficiency, 3450 RPM or VFD compatibility, and 1.30 service factor for long-lasting, energy-saving operation.
- Choose quiet models offering anti-vibration mounts and noise ratings around 70 dB or lower for pool-area comfort.
- Confirm voltage, phase, shaft diameter, and faceplate measurements to ensure direct-fit replacements like A.O. Smith and WhisperFlo equivalents.
- Look for dual-voltage 115/230V options and built-in overload protection for installation flexibility and motor safety.
- Verify manufacturer compatibility (B2855, B2843, UST1102, SP1610) and consider professional wiring for 208/230V setups.

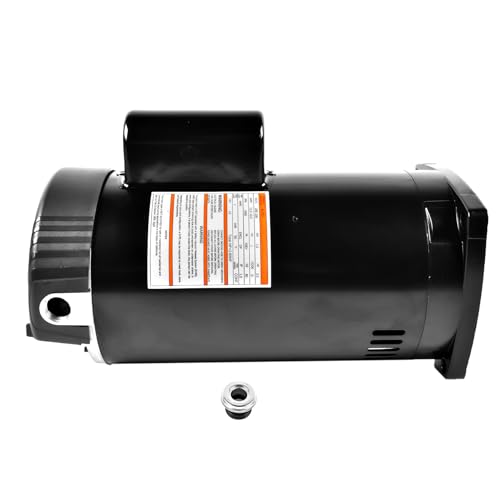

Replacement Pentair Whisperflo 2HP Pool Pump Motor (WFE-8) for AO Smith B2843 with GO-KIT-32
Flynsu Replacement for Pentair Whisperflo 2HP WFE-8 Pool Pump Motor, Replacement for AO Smith B...
- Replacement for Pentair Whisperflo 2HP Motor Single Speed
- Single Speed | 208/230 Volts | 11.0/10.2 Max Amps | 1.30 Service Factor | Threaded Shaft | 56Y Frame | 3450 RPM/60 HZ
- Replacement for Pentair WhisperFlo 2HP WFE-8 Pool Pump Motor
You may be interested
Confirm fit before you buy, measure the motor face and shaft dimensions. Select the Replacement Pentair WhisperFlo 2HP WFE-8, labeled for AO Smith B2843 and GO-KIT-32 compatibility. Turn power off, lock out the breaker, and remove the old motor safely. Confirm you need a single speed, 208/230 volt motor, rated 11.0/10.2 max amps, service factor 1.30. Verify frame 56Y and threaded shaft fit the pump. If dimensions differ, measure face plate bolt circle, shaft diameter, and depth, order correct GO-KIT-32 or consult a technician. Expect professional installation for ideal performance, especially when wiring 208/230V and motor grounding. Troubleshoot promptly.
Best For: Homeowners or pool technicians needing a direct replacement 2HP single-speed motor for Pentair WhisperFlo WFE-8 / AO Smith B2843 pumps that match a 56Y frame and 208/230V electrical setup.
Pros:
- Direct replacement for Pentair WhisperFlo WFE-8 and AO Smith B2843, compatible with GO-KIT-32 for straightforward swap.
- Robust 2HP, 3450 RPM motor with 1.30 service factor and rated max amps 11.0/10.2 for reliable pool circulation.
- Threaded shaft and standard 56Y frame make it suitable for many existing pump mounts and retrofit kits.
Cons:
- Single-speed 208/230V motor may not be suitable if you require multi-speed/variable-speed efficiency or a different voltage.
- Must confirm faceplate bolt circle, shaft diameter, and depth before buying—may not fit if dimensions differ.
- Installation and wiring (208/230V, grounding) can require professional assistance, adding cost and complexity.
2 HP Single Speed Pool Pump Motor Compatible with A.O. Smith Century B2855/B855
2 HP Pool Pump Motor Compatible with A.O. Smith Century B2855 B855, for Pentair Sta-Rite...
- 【OEM STANDARD】This swimming pool pump motor is manufactured in accordance with OE specifications. Meet or exceed OEM standards and can be directly installed...
- 【COMPATIBLE MODELS】Directly compatible with the following pool pump models: Sta-Rite Max-E-Glas, Max-E-Glas II, Dura-Glas, Dura-Glas II, Dyna-Glas, Dyna-Max...
- 【REPLACE PART NO.】10-177897-22, 1103675400, 177897, 182115, 193268, 1D191, 355025S, 5U126, 7-177897-22, 8-177897-22, A0104700, B2855, B855, B694, K48AA27A79, SQ120U...
Choose the 2 HP, 230 V single-speed motor when you need a direct replacement for B2855/B855. Remove power, lock out breaker, label leads, and unbolt the old motor using a 9/16″ socket, four threaded bolt holes align. Inspect the 303-grade stainless steel shaft for wear, measure diameter and keyway, compare to OE specs. Mount FOREBEN unit, connect advanced cooling housing, attach enhanced circuit connections, install no-adjust start switch, torque bolts to manufacturer spec. Verify compatibility with Whisperflo, Challenger, Pinnacle, Anthony AR2, reference OE number 10-177897-22. Note: not for California use. Contact after-sales for diagnostics. Prepare multimeter, record voltage, test.
Best For: Homeowners or service technicians needing a direct, high-quality replacement for A.O. Smith B2855/B855 and compatible Pentair Sta‑Rite pump applications.
Pros:
- Compatible with A.O. Smith B2855/B855 and many Pentair Sta‑Rite models (Whisperflo, Challenger, Pinnacle, Anthony AR2) for easy replacement.
- Heavy‑duty 303‑grade stainless steel shaft, upgraded cooling, and no‑adjust start switch for improved reliability and longer service life.
- Backed by a 36‑month warranty and 24‑hour after‑sales support from FOREBEN.
Cons:
- Prohibited for sale or installation in California for residential and commercial pool applications.
- Single‑speed design limits energy‑saving and hydraulic control compared with variable‑speed options.
- May require measuring shaft/keyway and adapter checks to ensure exact fit with some pump housings.
1.5 HP Single Speed Square Flange Pool Pump Motor (230/115 V) Compatible with A.O. Smith & Pentair
1.5 HP Pool Pump Motor Compatible with A.O. Smith Century B2854 B854, for Pentair Sta-Rite...
- 【OEM STANDARD】This swimming pool pump motor is manufactured in accordance with OE specifications. Meet or exceed OEM standards and can be directly installed...
- 【COMPATIBLE MODELS】Directly compatible with the following pool pump models: Sta-Rite Max-E-Glas, Max-E-Glas II, Dura-Glas, Dura-Glas II, Dyna-Glas, Dyna-Max...
- 【REPLACE PART NO.】0-193986-24, 0-F56AA40A01-24, 10-177216-24, 1103665400, 13773, 168453, 177216, 177475, 177972, 187333, 193986, 193986XCN, 196239, 196250, 355022S...
Inspect the motor nameplate to verify 1.5 HP, 115/208-230V ratings, square flange pattern, and rotation direction before you begin removal. Disconnect power at breaker, label wires, remove four 5/16″ flange bolts using 3/8″ socket, note shaft endplay, and lift motor straight out. Match to A.O. Smith and Pentair models listed, check part numbers stamped on housing, confirm angled terminal access for easier wiring. Expect single speed operation, no-adjust start switch, and 303 stainless shaft resisting corrosion. Test with multimeter for continuity, measure insulation resistance, contact seller for 36-month warranty claims, avoid installation in California. Keep manual and model sheet.
Best For: Homeowners or pool technicians needing a direct-fit, durable 1.5 HP replacement motor for A.O. Smith/Pentair square-flange pumps.
Pros:
- Manufactured to OEM standards for direct installation with wide compatibility (A.O. Smith & Pentair models listed).
- Corrosion-resistant 303-grade stainless steel shaft, advanced cooling, and angled terminal for easier wiring.
- No-adjust start switch and a 36-month warranty with professional after-sales support.
Cons:
- Prohibited for sale/installation in California for residential and commercial applications.
- Single-speed operation is less energy-efficient and flexible than variable-speed motors.
- Requires verification of nameplate, flange pattern, rotation, and wiring; professional installation may be needed.
B2855 2HP Pool Pump Motor (Single Phase, 230V)
B2855 2HP Pool Pump Motor Replaces Century/AO Smith Regal Beloit B855 Swimming Pool Pump Motors...
- 【REPLACE MOTOR NO】 B2855, B855, 10-177897-22, 1103675400, 177897, 182115, 193268, 1D191, 355025S, 5U126, 7-177897-22, 8-177897-22, A0104700, B694, K48AA27A79, SO120U...
- 【COMPATIBLE MODELS】Directly compatible with the following pool pump models: Dura-Glas, Dura-Glas II, Dyna-Glas, Dyna-Max, Sta-Rite Max-E-Glas, Max-E-Glas II...
- 【SPEC】2HP(1.5KW), 230V (Single Phase), 3450 RPM, 10.0 Amps, 56Y Frame 1.1Service Factor
Measure your pump motor mounting dimensions, then match the B2855’s 56Y frame, 2HP (1.5 kW), 230V, 10A ratings, and 3450 RPM shaft to the existing unit before removal. Confirm single-phase 230V feed, shut power at the panel first. Label wiring, photograph terminals, note capacitor size, then remove control box cover carefully for access. Verify included seal rings and o-rings, replace mechanical seal if worn now. Match replacement numbers B2855, B855, 177897, 1103675400, confirm 56Y frame fit, align shaft within 0.005 inch runout, torque bolts to spec, reconnect wiring per diagram, test run listen for bearing noise, check 10A draw.
Best For: Homeowners or pool technicians needing a direct 56Y-frame 2HP (230V) replacement for Century/AO Smith style pool pump motors like B855 and Pentair Whisperflo.
Pros:
- Direct-fit replacement for many models (B2855/B855/177897 series) and common pumps, simplifying swaps.
- Includes seal rings and o-rings and features upgraded OEM-quality construction for improved reliability.
- 2HP, 230V single-phase at 3450 RPM with a 2-year manufacturer warranty.
Cons:
- Only for 230V single-phase systems (not compatible with 115V installs).
- Installation requires careful measurement, shaft alignment (≤0.005″ runout), and possible mechanical-seal replacement—not a simple plug-and-play for novices.
- May require confirming capacitor size and correct wiring/torque specs; incorrect setup can cause motor or pump damage.

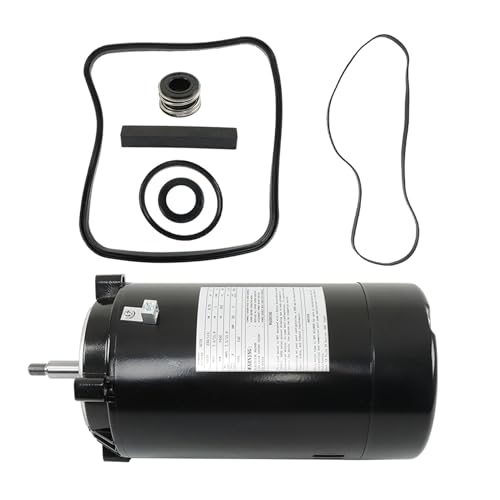

UST1102 1HP Swimming Pool Pump Motor Replacement for Super Pump SP2607X10 (A.O. Smith)
UST1102 Swimming Pool Pump Motor, 1HP Pool Pump Motor Replacement for Super Pump SP2607X10/A.O...
- Material: The pool pump motor material is made of solid iron, rust-resistant and wear-resistant, long service life.
- Performance: 230/115V, 3450RPM, 60HZ, 1HP.
- Replacement Part Number: UST1102, SP2607X10.
Install this 1HP UST1102 motor when you need a direct replacement for A.O. Remove the old SP2607X10 unit, shut power at the breaker, confirm 230/115V selector positioned. Mount the UST1102 to the base, align 303 stainless steel shaft, tighten bolts to spec. Connect coils and wiring per diagram, use multimeter, verify 3450 RPM, 60HZ under load. Inspect solid iron housing for wear, rely on rust-resistant finish, confirm seals, leak-free operation. Use two-person lift for tight spaces, note lightweight transport eases handling during installation process. Troubleshoot humming or vibration, recheck wiring, capacitor, and alignment, replace motor if RPM falls below 3400.
Best For: Homeowners or pool technicians needing a direct, durable 1HP replacement motor for A.O. Smith Super Pump SP2607X10.
Pros:
- Direct replacement for SP2607X10 (UST1102) with 1HP, 3450 RPM and dual 230/115V compatibility.
- Solid iron construction with rust-resistant finish and 303 stainless steel shaft for durability in harsh pool environments.
- Coils included and designed for straightforward installation; lightweight for easier transport and handling.
Cons:
- Solid iron build can still be heavier than some modern alloy motors and may require a two-person lift in tight spaces.
- Requires correct voltage selector positioning, wiring, and alignment—improper setup can cause humming, vibration, or reduced RPM.
- Compatibility is specific to Super Pump SP2607X10/A.O. Smith replacements and may not fit other pump models.
SP1610Z1MBK 1HP Pool Pump Motor (Fits Hayward)
SP1610Z1MBK Pool Pump Motor 1HP, Replacement for Hayward Pump, 115/230V Dual Voltage, 3450 RPM, 56J...
- 【Perfect Replacement for Hayward 1HP Pumps】Our SP1610Z1MBK 1HP pool pump motor is a direct replacement for Hayward 1HP pool pumps. Exact 56J frame and threaded shaft...
- 【Dual Voltage & High Performance】115/230V switchable dual voltage, 3450 RPM single speed, 7.5A (230V)/15A (115A) amperage. Equipped with capacitor start for high...
- 【Durable & Corrosion-Resistant Construction】1045 steel threaded shaft for excellent corrosion resistance, suitable for long-term use in pool water environments...
Select the SP1610Z1MBK when you need a direct Hayward 1HP replacement, confirm the 56J frame fits your mount and shaft alignment. Turn off power at the breaker, lock out and tag. Measure shaft diameter and length, use calipers, verify coupling compatibility with your pump housing and seal plate. Match voltage selection, set jumper for 230/115V operation. Note current ratings 7.5/15A, check motor nameplate, verify wiring gauge and overload protection meet specifications. Inspect weather-resistant casing and pedestal base for damage. If vibration occurs, retighten mounts, replace bearings, consult 24-hour customer service with model SP1610Z1MBK and serial number handy immediately please.
Best For: Homeowners or pool technicians needing a direct, energy-efficient 1HP replacement motor for Hayward pumps who can verify frame/shaft compatibility and perform proper electrical hookup.
Pros:
- Direct fit for Hayward 1HP applications (56J frame) for straightforward replacement.
- Dual-voltage (230/115V) and 3450 RPM performance that boosts flow and energy efficiency.
- Weather-resistant casing with a sturdy pedestal base and 24-hour customer support for installation help.
Cons:
- Requires careful verification of 56J frame, shaft diameter/length, and coupling compatibility before purchase.
- Dual-voltage jumper and 7.5/15A ratings demand correct wiring gauge and overload protection—may need electrician.
- Possible vibration/bearing issues over time; mounts may need retightening or bearing replacement.
B2853 1 HP Pool Pump Motor — Replaces Century/AO Smith; Compatible with Pentair Superflo, Sta‑Rite, Whisperflo, Jandy
B2853 1 HP, Replaces Century AO Smith Pool Pump Motors,115/230V, 3450 RPM, 13.20/6.6A, 56Y Frame...
- 【SPEC】1HP (0.75KW), 115/230V, 3450RPM, 13.2/6.6 Amps, 56Y Frame 1.25 Service Factor
- 【COMPATIBLE MODELS】Directly compatible with the following pool pump models: Pen-tair Whisperflo,SuperFlo, Ultraflo, Challenger, Pinnacl and Anthony AR2 Series...
- 【REPLACE PUMP MOTORS】A0104900 A100EL A100EL A100ELL AOSB2853V1 B1245 B2853 B2853V1 B692 B853 C1245 C48K2EB104 CRMB2853V1 EB853 F56AA37A01 K63CXERW4785 MGT...
Choose the B2853 when you need a direct, drop-in replacement for Century/AO Smith pumps, and confirm compatibility with Pentair SuperFlo, WhisperFlo, Sta‑Rite, Jandy models. Gather tools. Measure frame 56Y mounting centerline, verify 115/230V supply, note 3450 RPM and 13.2/6.6A ratings before install. Power down. Unbolt existing motor, match shaft size, transfer replace parts including brackets, seals, and capacitor if required, align carefully. Check service factor. Test run at full voltage, listen for noise, monitor amperage, troubleshoot overheating or vibration, swap mounts or bearings as needed. Document serial number, register two-year warranty online, retain receipts and installation notes for claims.
Best For: pool owners or technicians needing a direct, drop-in replacement for Century/AO Smith pumps and compatible Pentair, Sta‑Rite, Whisperflo, SuperFlo and Jandy models.
Pros:
- Wide compatibility with Pentair/Sta‑Rite/Jandy models and many replacement part numbers for easy swap-in.
- Dual-voltage (115/230V) 1 HP motor with 3450 RPM and 56Y frame for robust performance in most pool pump applications.
- Upgraded OEM quality with a 2-year manufacturer warranty for added reliability and peace of mind.
Cons:
- May require transferring or purchasing brackets, seals, capacitor, or bearings during installation (not always fully plug‑and‑play).
- 56Y frame and shaft dimensions must match existing pump—won’t fit all housings without modification.
- Higher current draw (13.2A at 115V) may necessitate circuit or wiring upgrades on older installations.
VEVOR 1 HP Pool Pump Replacement Motor for Swimming Pools & Spas (3450 RPM, 115V/230V)
VEVOR 1 HP Pool Pump Motor, 3450 RPM High Speed, 115V (9.0 Amps) / 230V (4.5 Amps), 90μF/250V...
- Powerful Pool Pump Motor: 1 HP 3450 RPM, 9.0Amp (115V) / 4.5Amp (230V) ; Amps (Max Load): 11/5.5 Amps; Service Factor: 1.25 ; Capacitor: 90μF/250V ; Model Flange: 56Y.
- Easy Installation: This swimming pool pump motor is easy to assemble with CCW rotation, 1/2-20UNF-2A output screw teeth, a shaft extension of 0.9-inch (23.01 mm) and...
- Rugged Steel Housing: Built for high strength and reliability, the pool pump motor features a rust-resistant and corrosion-resistant steel housing, ensuring long-lasting...
Consider this 1 HP motor if you need a compact, high-speed replacement for residential or light commercial systems. Install the 3450 RPM CCW 56Y flange motor, confirm shaft 0.9 inch. Select 115V for 9.0 A, 11 A max, or 230V for 4.5 A, 5.5 A max, use 90μF/250V. Mount with 4-φ10.8 mm bolts, match output 1/2-20UNF-2A threading, tighten to spec, secure and seal. Expect rugged steel housing, corrosion resistance, low noise and efficient 1 HP output, inspect seals and bearings monthly. Troubleshoot by testing capacitor and wiring, measure amperage, confirm rotation CCW and service factor 1.25, document model VEVOR.
Best For: homeowners and light commercial pool/spa operators who need a compact, high-speed 1 HP replacement motor with 3450 RPM and dual-voltage options.
Pros:
- Rugged steel, corrosion-resistant housing with low-noise, efficient 1 HP performance.
- Dual-voltage (115V/230V) capability with clear amperage specs and 56Y flange for common pump mounts.
- High speed (3450 RPM) and service factor 1.25 provide strong flow and extra load capacity.
Cons:
- Fixed CCW rotation — won’t work for pumps that require CW rotation without modification.
- Shaft extension is 0.9″ and output thread 1/2-20UNF-2A; may not match all pump impellers or couplings.
- Requires proper 90μF/250V capacitor, correct wiring and periodic seal/bearing inspection — installation/maintenance needs care.
VEVOR 1.5 HP Pool Pump Replacement Motor, 56J Frame, 115/230V, 3450 RPM
VEVOR 1.5 HP Pool Pump Motor, 56J Frame, 115V(13.6 Amps)/230V(6.8 Amps) 3450 RPM, 60Hz, 1.3 Service...
- Reliable Performance: VEVOR 1.5HP pool pump motor runs at 3450RPM high speed, delivering high-efficiency water circulation and a refreshing pool pump system. Voltage - AC...
- Easy Installation: Installing our swimming pool pump motor is a breeze with a thread size of 3/8-16UNC, output screw teeth of 7/16-20UNF-2A, and a 1.9-inch shaft...
- Safety and Durability: Our 1.5HP pool pump motor is fortified with corrosion-resistant steel housing, low starting torque, and ball-bearing construction. Combined with...
Match this 1.5 HP, 56J frame motor to mid-sized residential pools that need high flow, dependable 3450 RPM operation. Shut power, disconnect wiring. Verify voltage selection 115V or 230V, check amp draw 13.6A at 115V or 6.8A at 230V, confirm capacitor 90μF/250V compatibility. Inspect shaft extension. Measure shaft 1.9 inches, confirm thread size 3/8-16UNC, check output screw teeth 7/16-20UNF-2A for fit. Mount motor to pump housing securely. Use ball-bearing lubrication schedule, expect low starting torque, monitor noise around 65db during initial run, adjust mounts if vibration occurs. Test overload protection immediately. Record service factor 1.3, troubleshoot wiring per manual.
Best For: Homeowners with mid-sized residential pools needing a reliable, high‑flow replacement motor that delivers 3450 RPM performance for strong circulation.
Pros:
- High‑flow 3450 RPM operation with 1.5 HP and service factor 1.3 for dependable circulation and improved pool clarity.
- Durable, corrosion‑resistant steel housing with ball‑bearing construction, low starting torque, and built‑in overload protection.
- Easy installation with a supplied manual, energy‑efficient operation and relatively low noise (~65 dB).
Cons:
- Single‑speed 3450 RPM motor (not a variable‑speed unit), so less flexibility for energy savings during low‑demand periods.
- Requires correct electrical setup (115V vs 230V selection, appropriate amp handling and a 90 μF/250V capacitor), which may need an electrician.
- Shaft/thread dimensions (1.9″ extension, 3/8‑16UNC thread, 7/16‑20UNF‑2A output) must match your pump—may require adapter or different shaft for some pumps.
B2853 B2853V1 1HP Pool Pump Motor
B2853 B2853V1 1HP Pool Pump Motor 230V/115V 3450RPM 56Y Frame Compatible Motor for Swimming Pool...
- 【High Efficiency Energy-Efficient】 Engineered for peak performance, The 1.0 HP Pool Pump Motor delivers robust 3450RPM circulation while consuming less energy than...
- 【Reliable Performance】 1.0HP pool pump motor runs at 3450RPM high speed, delivering high-efficiency water circulation and a refreshing pool pump system. Electric...
- 【Applicable pool pump models】 Model Flange: 56Y. Choose the appropriate swimming pool motor based on the Model Flange of the electric motor, It operates on both...
Inspect the B2853 B2853V1 when replacing a 1.0 HP, dual-voltage 56Y pool pump motor. Shut power, verify voltage selection, note 115V or 230V jumper positions, and measure current draw. Confirm amperage limits, expect 9A at 115V or 4.5A at 230V, monitor with clamp meter. Check shaft extension 23.01±0.86mm, output screw teeth 12.7±0.51mm, thread size 4-10.8~0.38mm. Mount to 56Y flange, secure with correct bolts, align coupling, avoid misalignment that causes vibration. Expect quiet operation near 70dB, troubleshoot noise checking bearing wear, balance and motor mounts. Use the included manual, follow wiring diagrams, keep service factor 1.25 during heavy load scenarios.
Best For: Homeowners and pool technicians needing a compact, reliable 1.0 HP dual-voltage (115/230V) 56Y replacement motor for residential or light-commercial pools, spas, and pumps.
Pros:
- Dual-voltage 115/230V and 3450 RPM performance offers flexible replacement options and strong circulation with low energy consumption.
- Quiet operation (~70 dB) and robust construction with a 1.25 service factor for reliable, long-lasting use.
- Easy installation features (56Y flange compatibility, specified shaft and thread dimensions) and comprehensive manual plus packaged protection for safe shipping.
Cons:
- Must set voltage jumper correctly and observe amperage limits (9A @115V, 4.5A @230V); wiring errors can damage the motor.
- Not a variable-speed motor—less energy savings and flexibility compared with modern variable-speed drives.
- Requires proper flange/coupling alignment and precise shaft dimensions; misalignment or wrong mounting can cause vibration or bearing wear.
Factors to Consider When Choosing a Pool Pump Motor Replacement
Check housing fit, measure bolt spacing (5.5 in center-to-center), and verify shaft diameter before ordering.
Match horsepower (0.75–1.5 HP) to the pump curve, confirm 115/230V single- or 3‑phase, and choose 1,750 or 3,450 RPM for proper performance.
Confirm 1/2 in keyed or tapered shaft, C‑face/frame compatibility, and troubleshoot vibration or seal leaks if alignment’s off.
Compatibility With Pump Housing
How will you verify the replacement motor’s frame size, mounting pattern, and shaft alignment before buying the part? Measure frame dimensions with a caliper, confirm 56Y or 56J stamping, note flange width and bolt circle. Check shaft diameter and keyway with a micrometer, confirm end-play and axial runout tolerances, record measurements. Inspect pump housing for threaded bolt holes, match hole diameter and thread pitch with a thread gauge. Verify voltage, 115V or 230V, using the nameplate and your circuit breaker panel, avoid mismatches that can burn windings. Compare service factor from motor nameplate, choose higher SF for heavier duty cycles, improve reliability under variable load. Test fit using a spare coupling, align shaft using a dial indicator, correct misalignment with shims or adjustable mounts.
Horsepower and Sizing
One clear rule: match the motor horsepower to your pump’s required flow and head, starting with common sizes like 1.0, 1.5, or 2.0 HP. Measure system GPM and total dynamic head (TDH) using a flow meter and pressure gauge, record values in gallons per minute and feet. Select 1HP, 1.5HP, or 2HP based on measured GPM and TDH, upsize for large pools or heavy resistance. Inspect motor service factor, choose 1.25 to 1.5 for extra durability under load, note thermal protection. Confirm frame size 56Y and shaft dimensions, match mounting flange and coupling, avoid machining errors. Test run new motor, monitor amperage with a clamp meter, compare nameplate FLA to measured current, troubleshoot overheating or cavitation. Replace seals, recheck alignment, document performance logs weekly.
Voltage and Phase
Why match motor voltage and phase to your supply before ordering a replacement, and measure and label the existing circuit first. Check the motor nameplate, photograph it. Record voltage as 115V or 230V, note single‑phase or three‑phase, horsepower and amps. Shut off power, use a non‑contact voltage tester, open the junction box. Verify circuit breaker size and wire gauge, 14 AWG on 15A or 12 AWG on 20A. Avoid installing a single‑phase motor on three‑phase service, it can damage windings. Compare amp rating to circuit capacity, prevent nuisance trips or overheating during prolonged runs. Document all readings with a multimeter, note capacitor microfarads, contactor model, and conduit entries. Call a licensed electrician when you see service conversion needs or amp mismatches, get written confirmation.
Speed and RPM
With the electrical checks completed, shift focus to motor speed and RPM, since that determines flow and system compatibility. Match RPM precisely. Measure the existing motor, note 1725 versus 3450 RPM, record nameplate details, check pump curve compatibility. Prefer variable speed when possible. Install a 3450 RPM only for large pools or high-flow returns, expect higher GPM and increased energy draw. Use single speed for simple, fixed-flow systems. Program variable speed controllers to lower RPM during filtration, for example run at 1000–1500 RPM overnight to save kilowatts. Verify pump performance with a flow meter. Troubleshoot low flow by checking shaft rotation, impeller condition, suction leaks, and confirm RPM with a tachometer, replace motor if mismatched. Label the replacement motor with RPM and installation date.
Shaft Type and Frame
Because you need a precise fit and reliable alignment, inspect the shaft type, diameter, and frame before ordering a replacement motor. Measure shaft diameter, record values in inches and millimeters, for example 0.625 in (15.88 mm). Check whether the shaft is threaded or keyed, note thread pitch and keyway dimensions, photograph original components. Match frame size to existing pump, common frames include 56Y and 56J, verify mounting bolt pattern. Specify shaft material, prefer stainless steel for corrosion resistance in chlorinated water. Align shaft and impeller, use dial indicator to confirm runout below 0.005 in. If you detect vibration, recheck key seating, shaft straightness, and coupling alignment. Order the motor only after confirming these measurements and compatibility. Label parts and keep diagrams for future troubleshooting.
Efficiency and Energy
Check motor efficiency ratings immediately.
Select a motor with a service factor of 1.30, ensuring durability under load, verify nameplate horsepower and torque curves.
Choose dual voltage models when needed.
Confirm 115V/230V capability on the spec sheet, inspect terminal box, and match supply wiring and breakers precisely.
Aim for 3450 RPM for efficient circulation.
Check cooling system details like fan diameter in mm, bearing type, and serviceable lubrication points to prevent overheating faults.
Install a VFD to optimize speed and lower runtime.
Monitor amp draw with a clamp meter, record readings, compare to rated full-load amps, and troubleshoot high current by checking impeller blockage or shaft misalignment.
Choose energy-efficient models with winding insulation class F, calculate annual kWh savings using meter data and utility rates.
Noise and Vibration
If you want quieter operation, inspect bearing type, mounting pads, and starting-torque specs before you select a replacement motor. Mount the motor on anti-vibration pads, use stainless steel mounting bolts, torque to manufacturer spec, and level the base. Measure vibration with an accelerometer, a Fluke 805, record RMS values, watch for spikes above 2.8 mm/s. Align shaft coupling with a dial indicator, correct runout over 0.05 mm, recheck after 50 operating hours. Expect conversational noise, troubleshoot hums by checking capacitor condition and start relay function, replace as needed. Perform regular inspections of mounts and damping materials every three months, swap degraded pads, monitor decibel change. Document readings, note serial numbers and service actions, log improvements, consider replacement if vibration and noise remain above spec.
Frequently Asked Questions
How Do I Safely Dispose or Recycle My Old Pool Pump Motor?
Disconnect power, lock out the breaker, and tag the circuit. Drain the pump housing to 1-2 inches, remove 1/4-inch shaft bolts with a 3/8-inch ratchet, then separate motor and volute, note worn seals, don’t reuse damaged rotors. Wear PPE: gloves, safety goggles, and steel-toe boots. Transport motor to a certified scrap recycler or appliance depot, confirm they accept electric motors and expect a core fee, ask about hazardous waste handling.
Can I Use a Variable-Speed Controller With These Single-Speed Motors?
Don’t assume compatibility, check the motor nameplate first. Measure voltage, phase, and RPM, note frame (48Y, 56J), and record horsepower and service factor numbers. Avoid using a basic PWM controller on PSC single-speed motors. Install a compatible VFD when the motor is three-phase, size the VFD to at least 125% of motor full-load amps, configure V/F curve and ramp times. Test under load, monitor current and temperature, stop if overheating.
What Tools Are Required for DIY Motor Replacement and Alignment?
Gather your tools. Use a torque wrench, Allen keys, multimeter, dial indicator, shaft coupling, and feeler gauges for alignment. Measure runout. Mount the dial indicator to the housing, rotate the shaft slowly, record radial runout, keep under 0.005 inches. Check parallelism. Shim the motor with 0.005–0.020 inch shims, measure with calipers, don’t exceed 0.010 inch face runout. Verify electrical connections. Test continuity, check amp draw, troubleshoot noise, then you’re done.
Are There Local Energy-Efficiency Rebates or Tax Incentives for Replacement Motors?
Absolutely—it’s like finding a treasure chest! Check your state energy office website, enter your ZIP code, and download rebate PDFs. Contact your utility, ask for pump rebate forms specifying NEMA motor frame, HP rating (e.g., 1.5 HP), and variable-speed certification. Save invoice, motor model, SERIAL number, and runtime data log for validation. If claim fails, call program support, note case ID, photograph label and wiring, then resubmit within 90 days.
How Does Elevation or Altitude Affect Motor Performance and Cooling?
Account for reduced air density immediately. Because ambient pressure drops above 1,000 m, you’ll lose convective cooling, derate motor by 5–10% usually. Inspect cooling fan and heat sink. Check IEC/NEMA labels, confirm RPM and torque ratings, measure winding temperature with an IR gun. Increase ventilation, or select a derated motor. If thermal trips persist above 1,500 m, add forced-air blower at 1,200 CFM, lower load, or install larger frame motor.
